搭建兼容S3的云存储- Garage的安装和使用

· 3 min · centos / linux / devops

Garage的安装和使用#

现有的对象存储方案

准备工作#

安装Garage以及 web-ui#

首先需要准备一个配置文件 garage.toml, 存放位置没有要求

metadata_dir = "/var/lib/garage/meta"
data_dir = "/var/lib/garage/data"
db_engine = "sqlite"


replication_factor = 1


rpc_bind_addr = "[::]:3901"
rpc_public_addr = "localhost:3901"
rpc_secret = "f1b082015ee1564f71634d2a3985ef7092ba1f6f27d952d98cc964bc2a2a1526"


[s3_api]
s3_region = "garage"
api_bind_addr = "[::]:3900"
root_domain = ".s3-garage.techwork.cloud"


[s3_web]
bind_addr = "[::]:3902"
root_domain = ".web-garage.techwork.cloud"
index = "index.html"


[admin]
api_bind_addr = "[::]:3903"
admin_token = "5ac4f2778731704a1f03c1b267fea1ccaa14f61782945cd8960e7492471b327a"
metrics_token = "a684ce3d9ef9a847e0fb073392f15d91eb42bddec3d09479f844d1074c20544b"

注意:

[s3_api]中的 root_domain属性决定了请求的garage 服务的域名, garage约定就是以 <bucket>.s3-garage.example.com形式进行访问的, 例如你有一个名称为test的桶, 那么访问时就会以 test.s3-garage.example.com来进行 (尝试过设置为一级域名无法访问, 必需是s3-garage的二级域名)

创建工作空间#

Terminal window
mkdir -p /podman_data/garage

使用 podman-compose.yml 启动#

version: 3
services:
  # 存储服务
  garage:
    image: dxflrs/garage:v1.1.0
    container_name: garage
    restart: unless-stopped
    ports:
     - "3900:3900"   ## s3 api
     - "3901:3901"   ## rpc
     - "3902:3902"   ## s3 web
     - "3903:3903"   ## admin api and '/metrics' for prometheus
    volumes:
      - ./garage/garage.toml:/etc/garage.toml
      - ./garage/meta:/var/lib/garage/meta
      - ./garage/data:/var/lib/garage/data
    environment:
      - TZ=Asia/Shanghai
    networks:
      - techwork_net
  # garage ui界面
  webui:
    image: khairul169/garage-webui:latest
    container_name: garage-webui
    restart: unless-stopped
    ports:
      - "3909:3909"
    volumes:
      - ./garage/garage.toml:/etc/garage.toml:ro
    environment:
      API_BASE_URL: "http://garage:3903"
      S3_ENDPOINT_URL: "http://garage:3900"
    networks:
      - techwork_net
networks:
  techwork_net:
    driver: bridge

以上启动就可以在浏览器访问http://ip:3909访问了

Garage 使用#

关联节点#

创建key#

创建bucket#

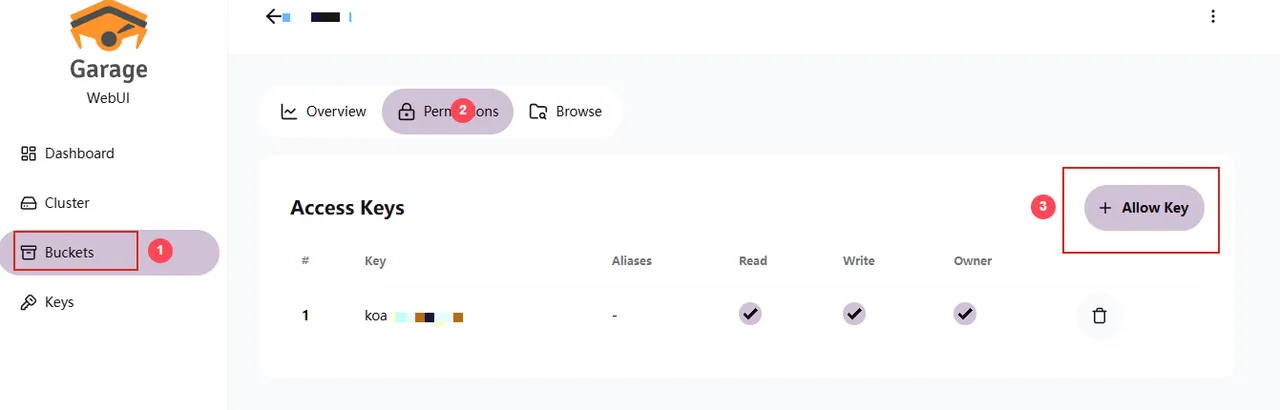

授权#

相关工具#

Garage 兼容s3, 例如使用一些支持s3的客户端工具: minio clicent, amazon s3 client

安装aws client#
Terminal window
```bash
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
sudo yum install unzip
unzip awscliv2.zip
sudo ./aws/install


# config client
aws configure


# userprofile
vim ~/.awsrc
### add content for .awsrc
export AWS_ACCESS_KEY_ID=     # put your Key ID here
export AWS_SECRET_ACCESS_KEY=  # put your Secret key here
export AWS_DEFAULT_REGION='garage'
export AWS_ENDPOINT_URL='http://localhost:3900' #替换为你的Garage实际IP和端口


source .awsrc

配置 aws configure命令时 按照提示输入以下信息：
